Reynolds mat also called gabion cushion, gabion pad, pad shape refers to the engineering component by the machine a twisted hexagonal metal mesh which thickness is much smaller than the length and width of the. Reynolds mat into stone filling materials after connected together, become the main structure of anti water used for flushing the embankment, slope, Hayman etc., has the advantages of flexibility and adaptability to the foundation.

Reynolds mat is thickness in the cage structure of 0.17-0.3m, for filling stone in the field. As a main channel, slope, slope of subgrade slope protection structure. It can not only prevent the river from being damaged by the water flow and wind storm, but also realize the natural convection exchange function between the water body and the slope, which can reach the ecological balance. The slope greening landscape, greening effect can be added.

The difference between Reynolds mat and gabion, stone cage cage is padded with low altitude, the structure form of flat and large diameter; coated steel wire gabion fine, generally have a double diaphragm (wire diameter 2.0mm), single partition (2.2mm) two. The commonly used double diaphragm Reynolds mat, the utility model has the advantages of convenient construction, can effectively prevent the stone slope collapse and increase the anti scouring ability etc..

Reynolds mat is divided into a plurality of cells, in order to strengthen the Reynolds mat structure strength, all of the panel edge with larger diameter wire Reynolds mat product specifications (specific size can also be customized according to the requirements of engineering design).

2 characteristics of Reynolds mat

1 improve the stability of river bed slope

2 protection of river bed to prevent erosion

3 to provide a predetermined value of the riparian roughness coefficient (m)

Greening and ecological protection, 4 slope revetment

5 convenient construction

Reynolds cushion material

(1): high quality low carbon steel wire galvanized steel wire, steel wire diameter 2.0MM-4.0MM, the tensile strength of the steel wire not less than 380Mpa, the surface of hot galvanized steel wire protection, protection of the thickness of the galvanized production according to customer requirements, the largest amount of zinc can reach 300g/m2.

(2) -5% zinc aluminum - rare earth alloy steel wire, steel wire (also called Gao Erfan), this is a recent international emerging emerging as a new material, corrosion resistance is 3 times higher than the traditional pure zinc wire, the diameter of up to 1.0MM-3.0MM, the tensile strength of the steel wire not less than 1380Mpa.

(3) galvanized steel wire package: high quality low carbon steel wire [1]

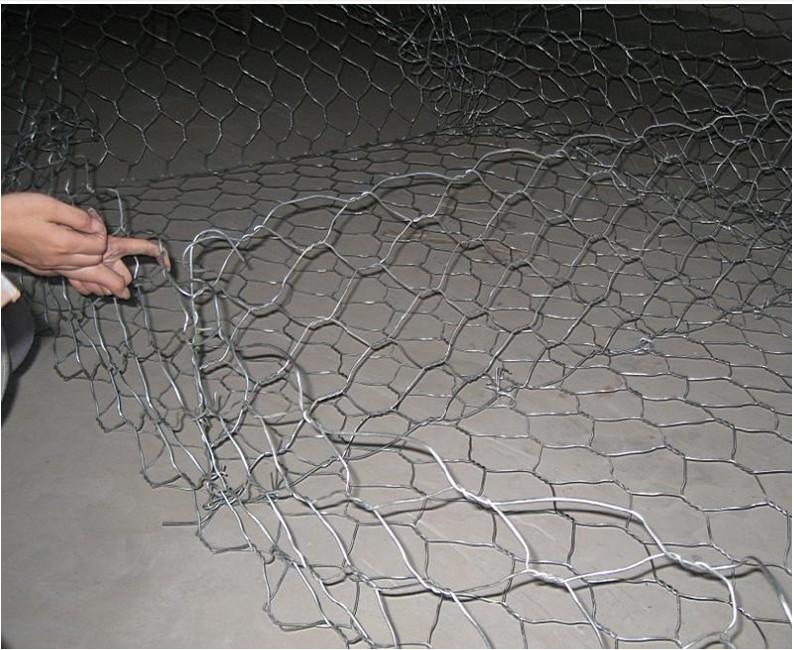

, the surface of the steel wire wrapped in a layer of PVC protective layer, and then woven into a variety of specifications of the six angle network. This layer of PVC protection will greatly increase the protection of the environment in high pollution, and through the choice of different colors, so that it can be integrated with the surrounding environment.

Four

Reynolds mat parameters

(1) aperture: 60*80mm, 80*100mm, 80*120mm, 100*120mm, 120*150mm

The double stranded part length not less than 50mm. to ensure that part of the wire strands of metal plating and PVC coating damage.

(2) the wire diameter: the stone cage nets three - wire diameter, wire, tie wire mesh edge

1 mesh in the range of 2mm-4mm

The 2 side is generally greater than 0.5mm-1mm thick wire mesh.

3 wire is generally less than the mesh, common to 2.2mm.

(3) wire pull: not less than 380N/mm 38kg/m2

(4) surface treatment

1 Zinc plating. The highest zinc content was 10g/m2. Poor corrosion resistance

2 hot dip galvanized steel. The highest amount of zinc can reach 300g/m2. Strong corrosion resistance

3 Galfan (zinc Aluminum Alloy). This is divided into two kinds of materials, zinc -5% aluminum mixed rare earth alloy steel wire, zinc -10% aluminum mixed rare earth alloy steel wire. Super corrosion resistance

4.PVC plastic package. The thickness of the plastic package is generally 1.0mm thickness, for example: after the 2.7mm package for 3.7mm. Strong corrosion resistance

(5): partition partition in the stone cage net long direction on a per Mega

(6) size: can be customized

(7) the range of the diameter of the diameter and the diameter of the silk
